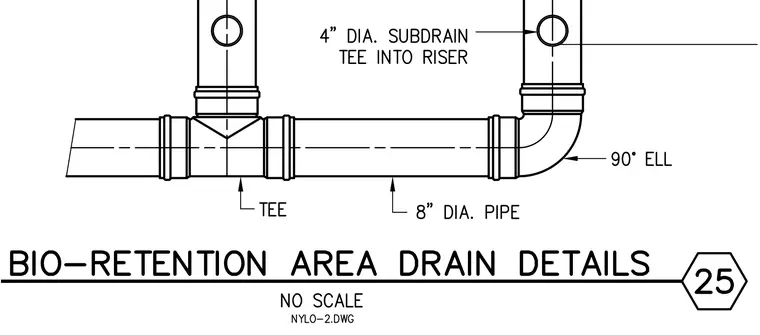

An 8-inch diameter pipe connects to a tee fitting and a 90-degree elbow fitting for a bio-retention drainage system. A 4-inch diameter subdrain tees directly into the vertical riser pipe.
