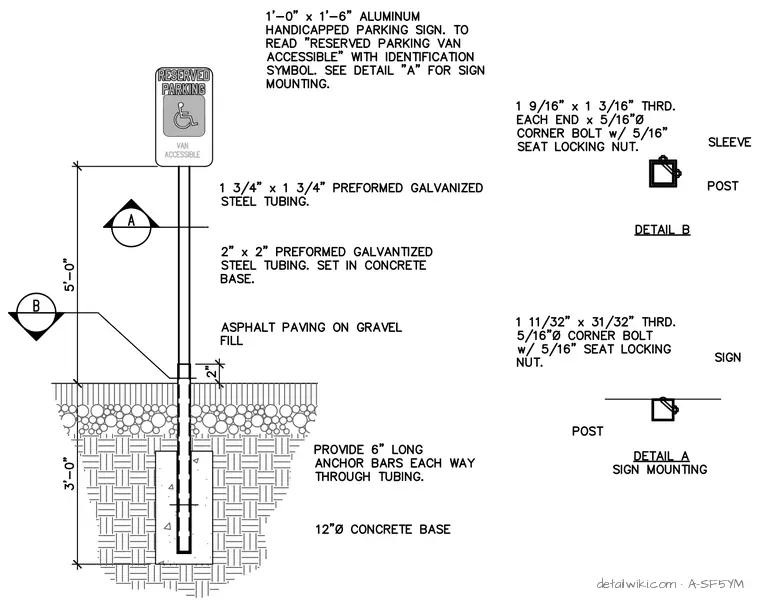

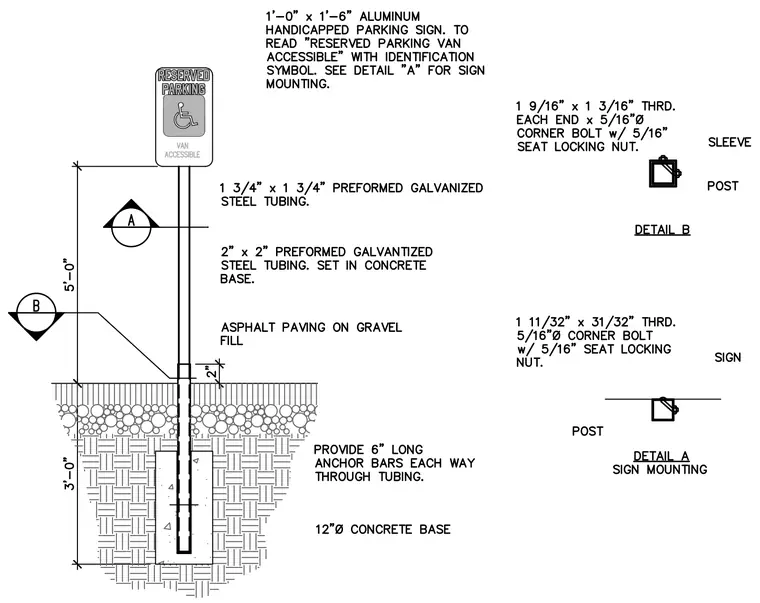

A one-foot by one-foot-six-inch aluminum handicapped parking sign mounts to a one-and-three-quarter-inch square preformed galvanized steel tubing post. This upper post section connects to a two-inch square preformed galvanized steel tubing base post, embedded three feet deep into a twelve-inch diameter concrete foundation. The base post secures within the concrete using six-inch long anchor bars installed through the tubing in each direction. The sign attaches to the post using a one-and-eleven-thirty-seconds-inch by thirty-one-thirty-seconds-inch threaded five-sixteenths-inch diameter corner bolt with a seat locking nut. The post assembly includes a sleeve connection utilizing a one-and-nine-sixteenths-inch by one-and-three-sixteenths-inch threaded five-sixteenths-inch diameter corner bolt and seat locking nut.
