Millwork casework features a white low-pressure laminate interior with three-quarter-inch doors and adjustable shelving mounted on flush-mounted shelf standards. The cabinet top aligns with an adjacent gypsum board soffit, incorporating a one-eighth-inch painted black reveal at the intersection. Cabinet pulls are installed per the finish schedule, maintaining a three-foot vertical clearance and a minimum one-foot-one-inch clear width dimension.

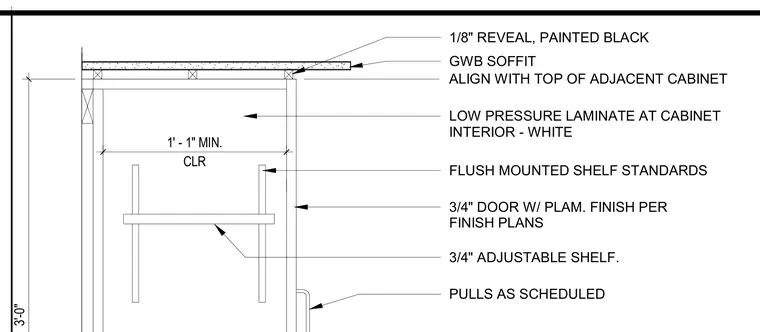

GWB SOFFIT 1/8" REVEAL, PAINTED BLACK ALIGN WITH TOP OF ADJACENT CABINET LOW PRESSURE LAMINATE AT CABINET INTERIOR - WHITE 3/4" DOOR W/ PLAM. FINISH PER FINISH PLANS 3/4" ADJUSTABLE SHELF. PULLS AS SCHEDULED 3'-0" CLR 1' - 1" MIN. FLUSH MOUNTED SHELF STANDARDS
