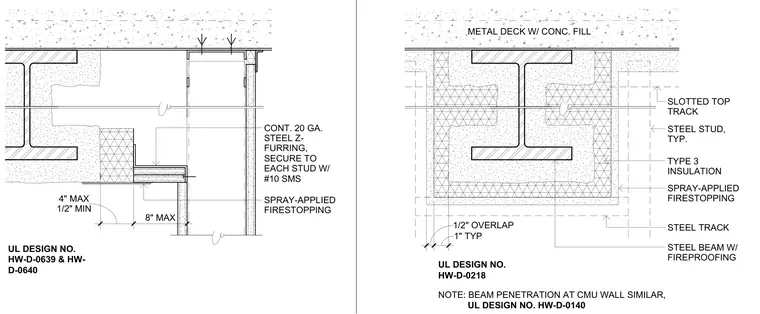

A slotted top track and steel studs meet a fireproofed steel beam beneath a concrete-filled metal deck, sealed with spray-applied firestopping in compliance with UL Design Number HW-D-0218. Continuous twenty-gauge steel Z-furring secures to each stud with number ten sheet metal screws, maintaining a one-half-inch overlap and specific clearance dimensions per UL Design Numbers HW-D-0639 and HW-D-0640. Spray-applied firestopping is also detailed for beam penetrations at concrete masonry unit walls under UL Design Number HW-D-0140.
UL DESIGN NO. HW-D-0218 SLOTTED TOP TRACK STEEL STUD, TYP. STEEL TRACK TYPE 3 INSULATION SPRAY-APPLIED FIRESTOPPING 1/2" OVERLAP 1" TYP METAL DECK W/ CONC. FILL STEEL BEAM W/ FIREPROOFING NOTE: BEAM PENETRATION AT CMU WALL SIMILAR, UL DESIGN NO. HW-D-0140 CONT. 20 GA. STEEL Z- FURRING, SECURE TO EACH STUD W/ #10 SMS SPRAY-APPLIED FIRESTOPPING 8" MAX 1/2" MIN 4" MAX UL DESIGN NO. HW-D-0639 & HW- D-0640
