Grade Beam and Shear Wall Foundation Connection Detail

Materials

Concrete Reinforced Concrete Glass / Glazing

Elements

Columns Beams Walls Shear Walls Foundations / Footings Reinforcing

About this detail

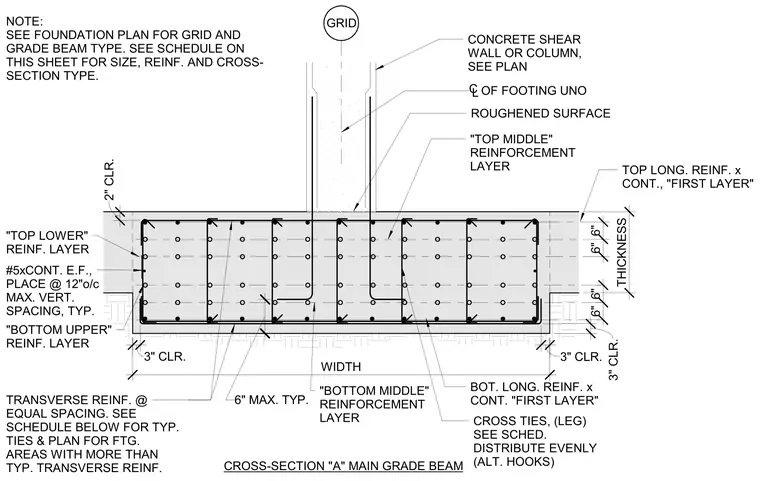

A reinforced concrete grade beam and footing supports a concrete shear wall or column centered on the footing. The assembly incorporates multiple layers of continuous top and bottom longitudinal reinforcement, vertical number 5 bars placed at 12 inches on center maximum spacing each face, and transverse reinforcement with cross ties distributed evenly with alternating hooks. Clearances of 2 inches and 3 inches are specified for concrete cover. The footing surface is roughened where it meets the wall or column, and sizes and reinforcing schedules are coordinated per the structural plans.
