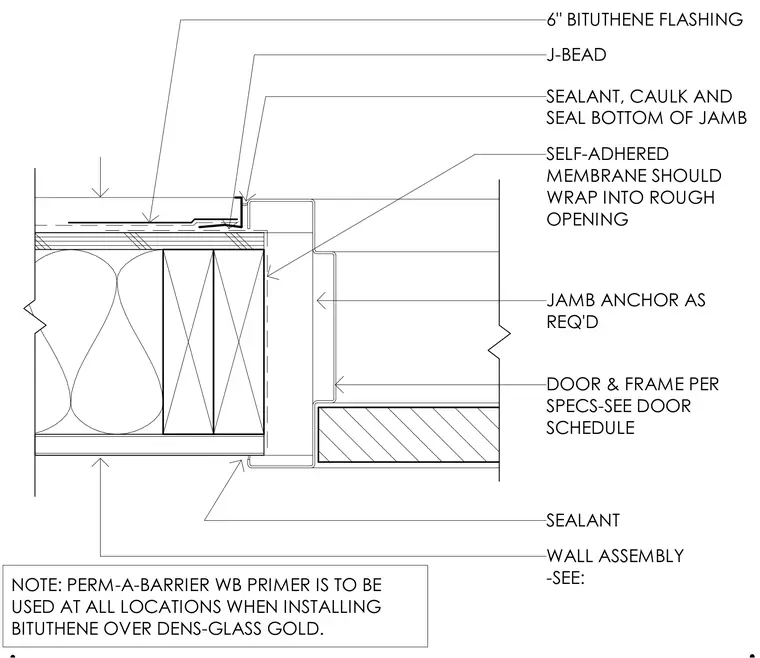

An exterior door jamb detail in a framed stucco wall assembly, showing the connection between the wall structure and the door frame. A self-adhered membrane wraps into the rough opening, supplemented by six-inch bituthene flashing and a J-bead at the plaster edge. Jamb anchors secure the door frame per specifications, with continuous sealant applied along the bottom of the jamb and exterior joints to maintain weather-tightness. Perm-a-Barrier WB primer is required at all locations when installing bituthene over Dens-Glass Gold sheathing.
6" BITUTHENE FLASHING J-BEAD SEALANT, CAULK AND SEAL BOTTOM OF JAMB JAMB ANCHOR AS REQ'D DOOR & FRAME PER SPECS-SEE DOOR SCHEDULE SEALANT WALL ASSEMBLY -SEE: . NOTE: PERM-A-BARRIER WB PRIMER IS TO BE USED AT ALL LOCATIONS WHEN INSTALLING BITUTHENE OVER DENS-GLASS GOLD. SELF-ADHERED MEMBRANE SHOULD WRAP INTO ROUGH OPENING
