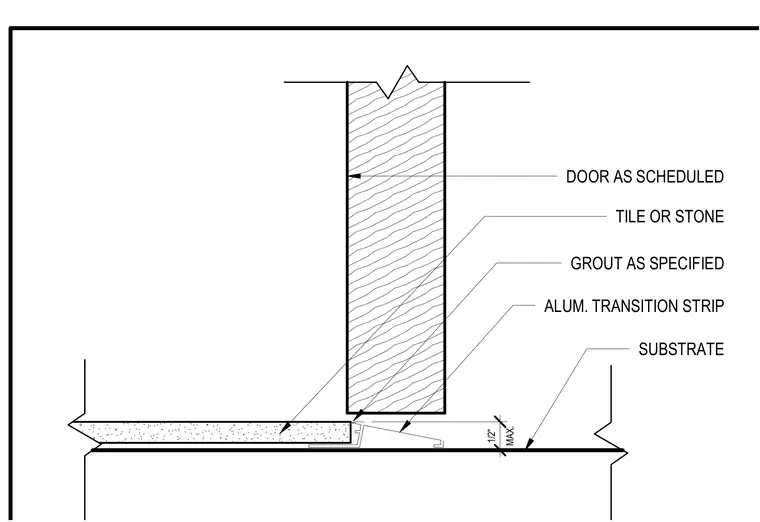

An aluminum transition strip meets the scheduled door over a grouted tile or stone finish floor set upon a structural substrate. A maximum one-half inch clearance is maintained at the door threshold as scheduled.
MAX. 1/2" DOOR AS SCHEDULED ALUM. TRANSITION STRIP GROUT AS SPECIFIED TILE OR STONE SUBSTRATE
