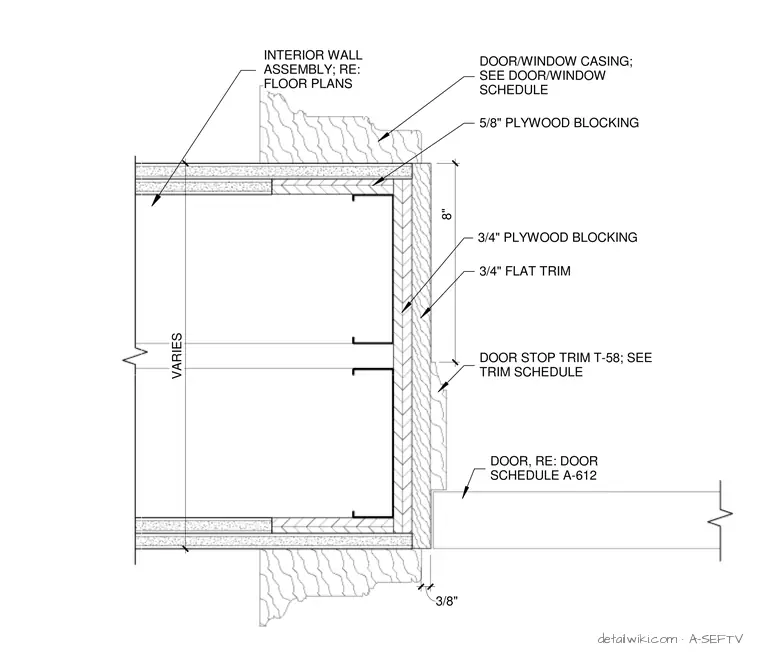

This interior door jamb and casing assembly connects to an interior wall framing assembly with variable dimensions. Three-quarter inch plywood blocking and five-eighths inch plywood blocking support a three-quarter inch flat trim and a door stop trim T-58 as specified in the trim schedule. A door casing per the door and window schedule finishes the opening.
DOOR/WINDOW CASING; SEE DOOR/WINDOW SCHEDULE 3/4" FLAT TRIM 3/4" PLYWOOD BLOCKING 3/8" VARIES INTERIOR WALL ASSEMBLY; RE: FLOOR PLANS DOOR STOP TRIM T-58; SEE TRIM SCHEDULE DOOR, RE: DOOR SCHEDULE A-612 5/8" PLYWOOD BLOCKING 8"
