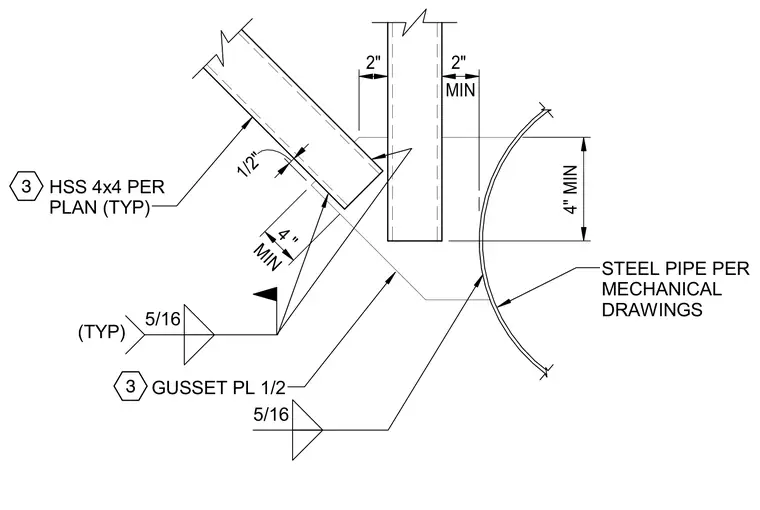

A 4x4 hollow structural section brace connects to a half-inch gusset plate with five-sixteenths typical fillet welds. The gusset plate is positioned adjacent to a steel pipe sized per mechanical drawings, maintaining a minimum four-inch clearance and two-inch spacing. The assembly incorporates specific dimensional clearances to accommodate mechanical services while maintaining structural bracing integrity.
GUSSET PL 1/2 3 5/16 HSS 4x4 PER PLAN (TYP) 3 5/16 (TYP) 1/2" MIN 4 " STEEL PIPE PER MECHANICAL DRAWINGS MIN 2" 2" 4" MIN
