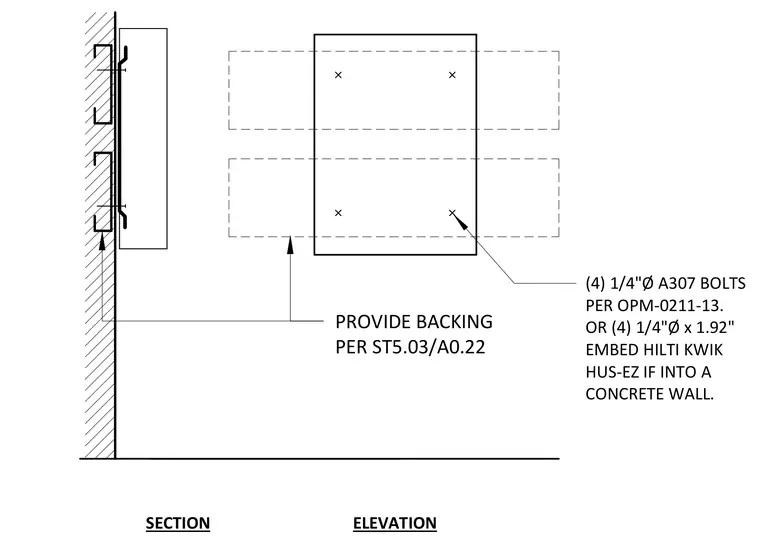

Equipment is fastened to a wall using four quarter-inch diameter A307 bolts per OPM-0211-13 or four quarter-inch diameter by 1.92-inch embedment Hilti Kwik Hus-Ez anchors when mounted directly into a concrete wall. Structural backing is provided per ST5.03/A0.22.
ELEVATION SECTION PROVIDE BACKING PER ST5.03/A0.22 (4) 1/4"Ø A307 BOLTS PER OPM-0211-13. OR (4) 1/4"Ø x 1.92" EMBED HILTI KWIK HUS-EZ IF INTO A CONCRETE WALL.
