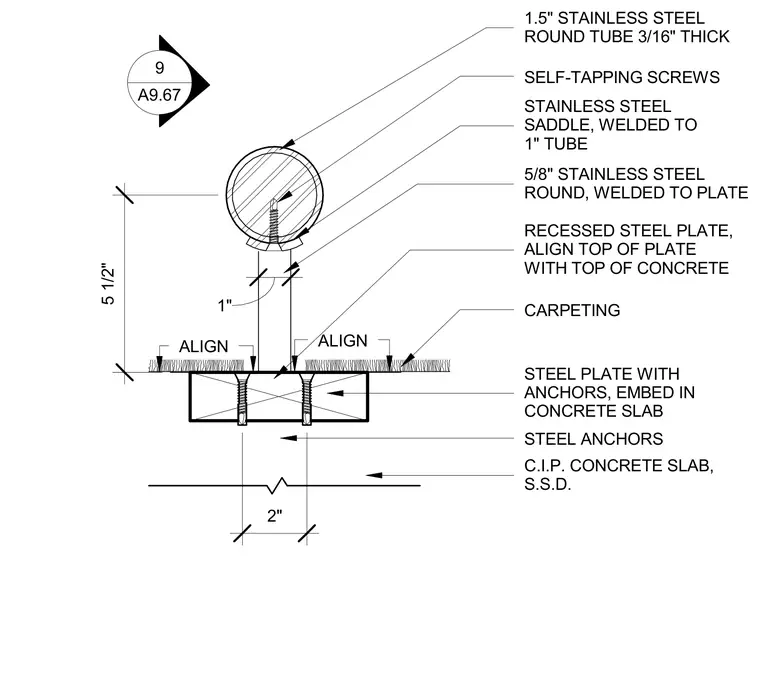

A 1.5-inch diameter stainless steel round tube with a 3/16-inch thickness is secured to a stainless steel saddle using self-tapping screws. The saddle is welded to a 1-inch stainless steel round tube, which in turn is welded to a recessed steel plate anchored into a cast-in-place concrete slab. The recessed steel plate aligns flush with the top of the concrete slab beneath the carpeting. Steel anchors secure the embedded plate within the concrete slab.
2" 5 1/2" 1" ALIGN ALIGN 1.5" STAINLESS STEEL ROUND TUBE 3/16" THICK SELF-TAPPING SCREWS STAINLESS STEEL SADDLE, WELDED TO 1" TUBE 5/8" STAINLESS STEEL ROUND, WELDED TO PLATE C.I.P. CONCRETE SLAB, S.S.D. CARPETING STEEL ANCHORS STEEL PLATE WITH ANCHORS, EMBED IN CONCRETE SLAB RECESSED STEEL PLATE, ALIGN TOP OF PLATE WITH TOP OF CONCRETE 9 A9.67
