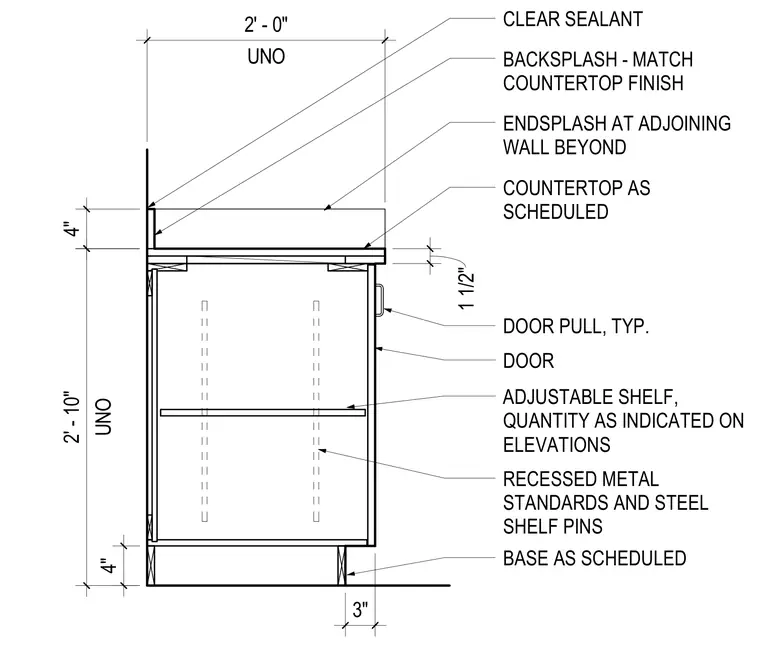

This base cabinet assembly stands at a height of two feet ten inches with a depth of two feet unless noted otherwise, supported on a four-inch base. The unit contains an adjustable shelf resting on recessed metal standards and steel shelf pins, concealed behind a cabinet door fitted with a typical door pull. A countertop as scheduled sits on top with a matching backsplash and an endsplash positioned against the adjoining wall beyond. Clear sealant is applied at the wall joint.
4" 4" UNO 2' - 0" UNO 2' - 10" 1 1/2" 3" BACKSPLASH - MATCH COUNTERTOP FINISH ENDSPLASH AT ADJOINING WALL BEYOND COUNTERTOP AS SCHEDULED DOOR PULL, TYP. BASE AS SCHEDULED CLEAR SEALANT RECESSED METAL STANDARDS AND STEEL SHELF PINS ADJUSTABLE SHELF, QUANTITY AS INDICATED ON ELEVATIONS DOOR
