Architectural · A-SDFFT

Floor Identification Sign

Elements

About this detail

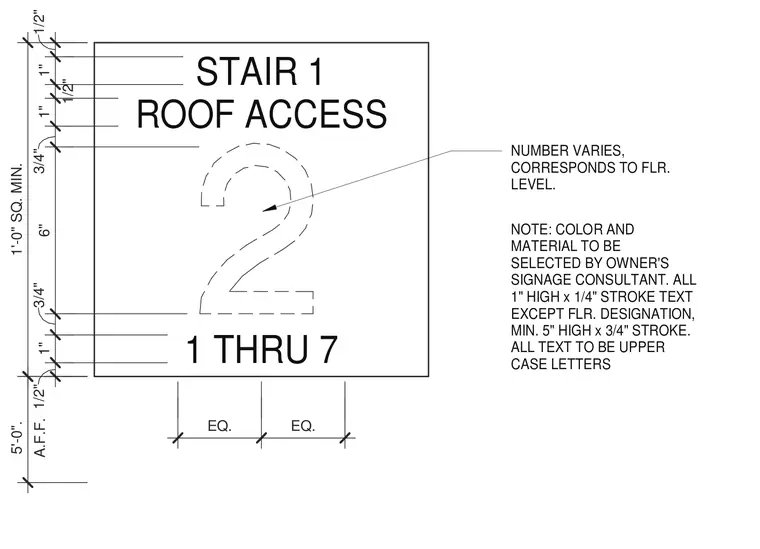

Floor identification signage layout specifying typography, stroke dimensions, and mounting height requirements. The square sign measures one foot square minimum with a mounting height of five feet above the finished floor to the bottom of the sign. Floor numbers vary to correspond with the floor level, using a minimum five-inch height with a three-quarter-inch stroke. Secondary text reads stair one roof access and one thru seven, using one-inch height with a quarter-inch stroke, with all text formatted in upper-case letters. Colors and materials are to be selected by the owner's signage consultant.
