Millwork Detail with Trash Chute and Waterfall Edge

Materials

Elements

About this detail

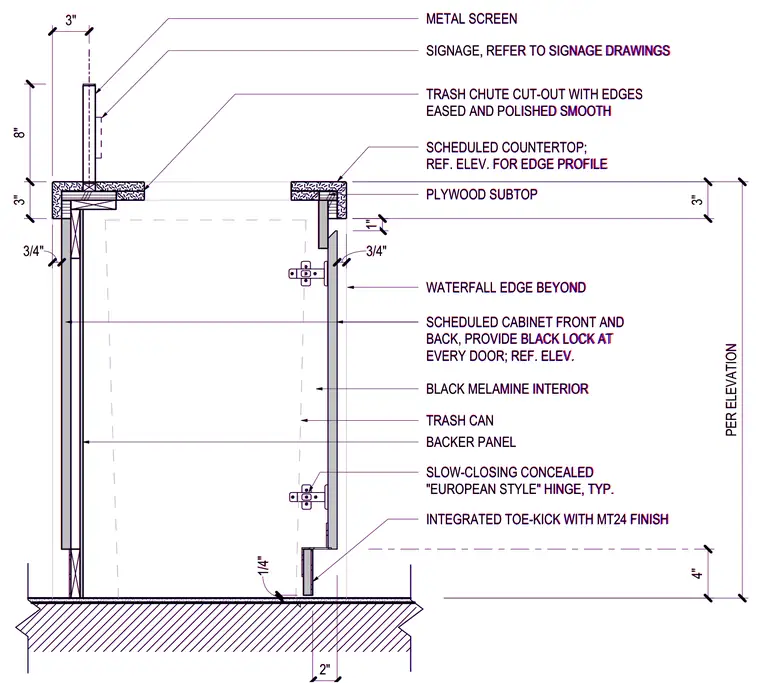

Casework assembly incorporating a trash can enclosure with a top trash chute cut-out featuring eased and polished smooth edges. A scheduled countertop sits over a plywood subtop with a waterfall edge condition extending down the side, backed by a metal screen and signage as referenced on other sheets. The cabinet body features a black melamine interior, a backer panel, and scheduled front and back cabinet doors equipped with slow-closing concealed European-style hinges and black locks at every door. The base of the unit incorporates an integrated toe-kick with an MT24 finish resting above the floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
