Architectural · A-SD8JN

Belowgrade Waterproofing Termination at East Storefront

Materials

Concrete Aluminum

Elements

Beams Walls Retaining Walls Storefronts Floors / Slabs Waterproofing / Flashing

Connections

Shear Stud / Composite

About this detail

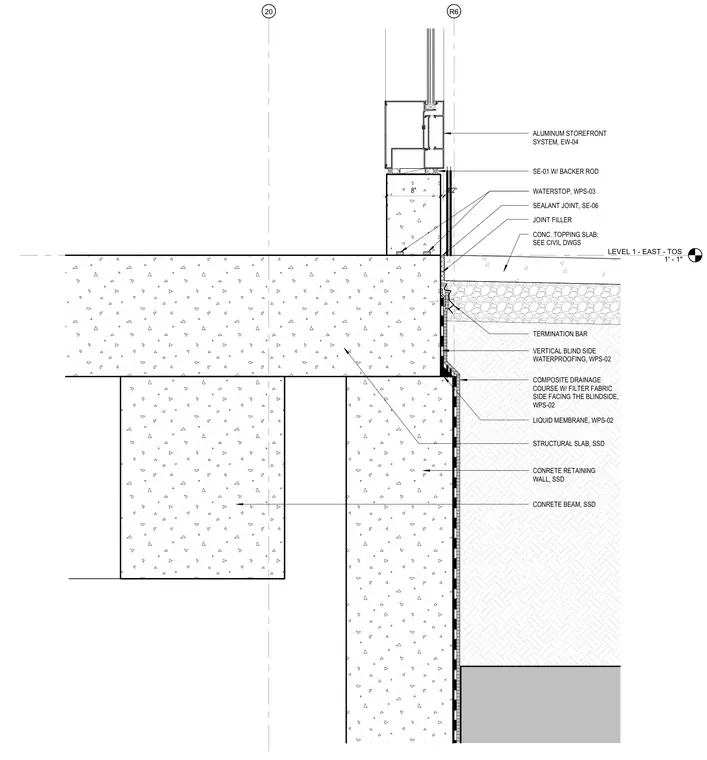

An aluminum storefront system sits atop an eight-inch concrete retaining wall, separated by a waterstop, joint filler, and a sealant joint with backer rod. Vertical blind side waterproofing is applied to the exterior face of the retaining wall and terminated using a termination bar with liquid membrane. A composite drainage course with filter fabric faces the blind side waterproofing below the concrete topping slab. The concrete retaining wall ties into a structural slab and concrete beam assembly.
