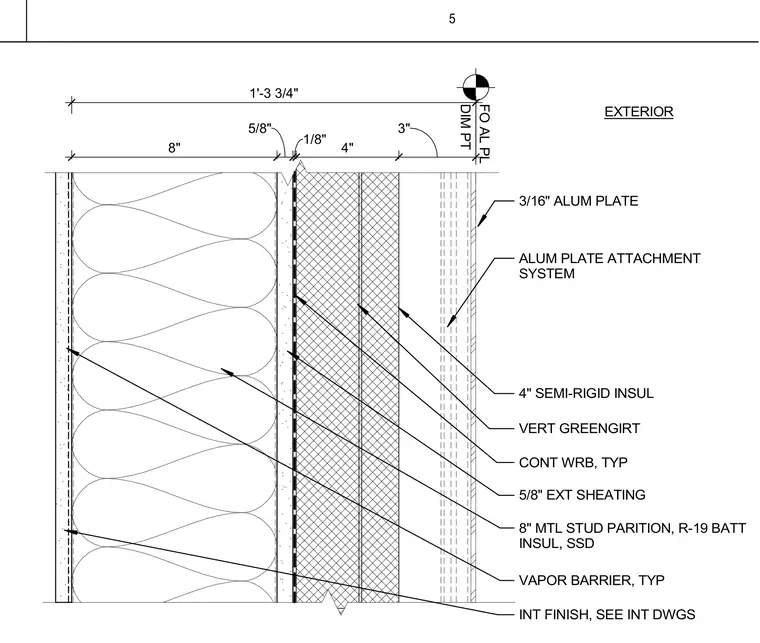

An exterior wall assembly features a 3/16-inch aluminum plate panel secured with an aluminum plate attachment system over four inches of semi-rigid continuous insulation. A vertical green girt spans outward from the exterior sheathing, while a weather-resistive barrier and vapor barrier protect the core framing. The backup structure consists of an eight-inch metal stud partition filled with R-19 batt insulation and finished on the interior per interior drawings. The total assembly depth measures 1'-3 3/4" from the exterior face of the aluminum plate to the interior finish.
EXTERIOR 4" SEMI-RIGID INSUL CONT WRB, TYP 5/8" EXT SHEATING INT FINISH, SEE INT DWGS FO AL PL DIM PT 8" MTL STUD PARITION, R-19 BATT INSUL, SSD VERT GREENGIRT 8" 5/8" 1/8" 4" 3" 1'-3 3/4" 3/16" ALUM PLATE ALUM PLATE ATTACHMENT SYSTEM VAPOR BARRIER, TYP 5
