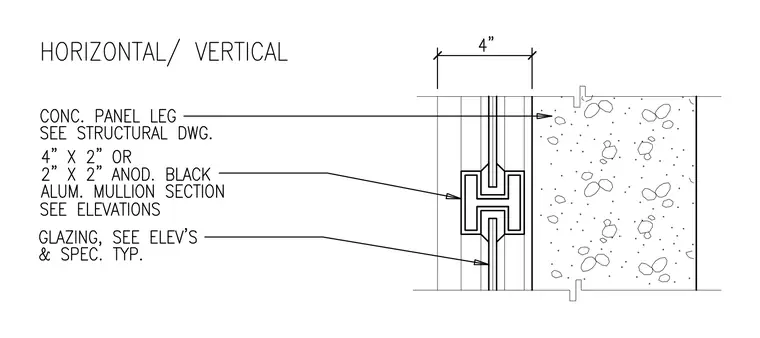

An anodized black aluminum mullion, sized four inches by two inches or two inches by two inches, is positioned adjacent to a concrete panel leg with a four-inch dimensioned clearance. The concrete panel leg is sized per structural drawings, and the glazing is installed per elevations and specifications typical. The mullion profile incorporates channels to receive the glazing material.
