An aluminum dimensional building designation number is mounted to an exterior wall using a sleeve and a spacer per the manufacturer. Attachment requires a minimum of two 1/4-20 fasteners per letter or number complete with bolt and washer. The assembly relies on structural backing provided per project specifications and supports a maximum weight of 20 pounds.

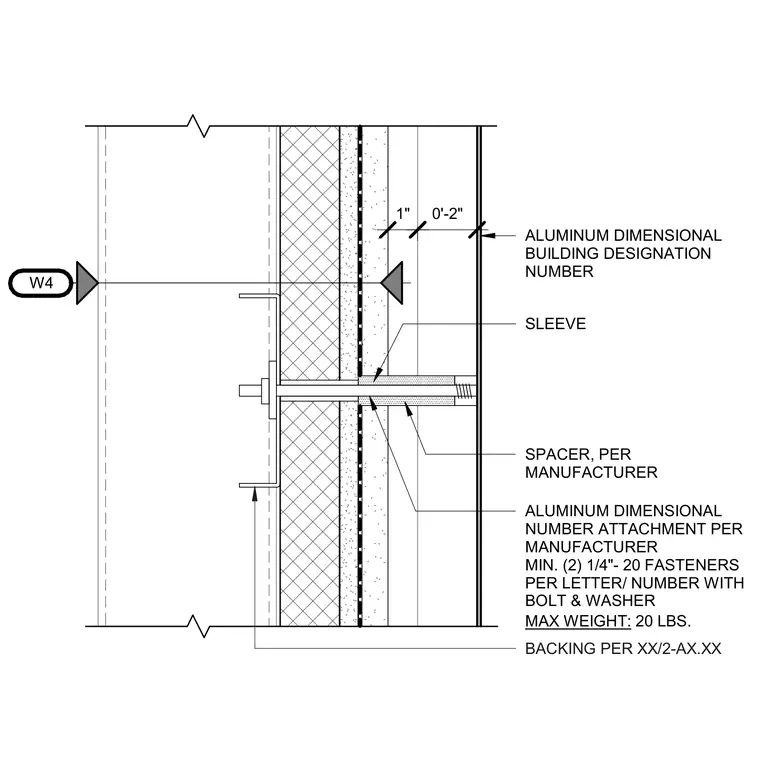

W4 ALUMINUM DIMENSIONAL BUILDING DESIGNATION NUMBER ALUMINUM DIMENSIONAL NUMBER ATTACHMENT PER MANUFACTURER MIN. (2) 1/4"- 20 FASTENERS PER LETTER/ NUMBER WITH BOLT & WASHER 1" SPACER, PER MANUFACTURER BACKING PER XX/2-AX.XX MAX WEIGHT: 20 LBS. SLEEVE 0'-2"
