Architectural · A-SCPDQ

Wall-Mounted Steel Ladder and Safety Striping Detail

Materials

Elements

Walls Floors / Slabs Roof / Floor Openings

About this detail

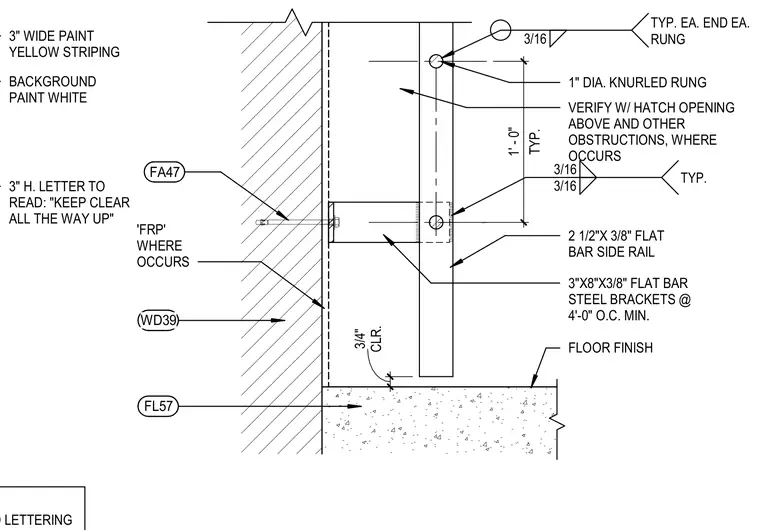

A wall-mounted steel ladder assembly features 1-inch diameter knurled rungs spaced at 1'-0" typically, welded to 2 1/2" x 3/8" flat bar side rails with 3/16" fillet welds at each end of each rung. The ladder is anchored to the wall using 3" x 8" x 3/8" flat bar steel brackets spaced at 4'-0" on center maximum, maintaining a 3/4" clearance above the floor finish. The adjacent wall and floor surfaces include specific finish designations with a white background paint, 3" wide yellow safety striping, and 3" high lettering reading 'KEEP CLEAR ALL THE WAY UP', with clearances to be verified against overhead hatch openings and other obstructions.
