Telecommunications · A-SCMR5

Hid Card Reader (Prox)

Elements

About this detail

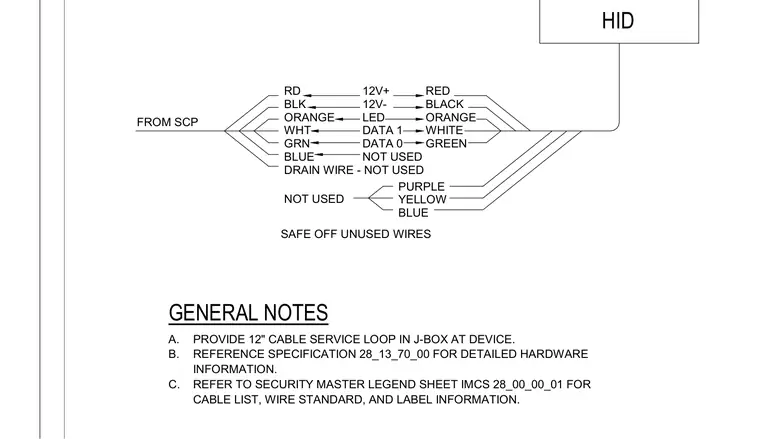

Wiring diagram for an HID proximity card reader detailing the conductor color-coding from the security control panel to the device. Red, black, orange, white, and green conductors provide 12V power, LED indication, data 1, and data 0 signals. Unused wires including blue, drain wire, purple, and yellow are safely capped off at the junction box. General notes require a twelve-inch cable service loop at the device junction box and reference security master specifications.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership

Similar details
