Architectural · A-SCMJQ

Security Swing Gate and Turnstile Fencing Assembly

Materials

Concrete Steel

Elements

Beams Foundations / Footings Entrances Site / Paving Connections / Plates

Connections

Welded Connection

About this detail

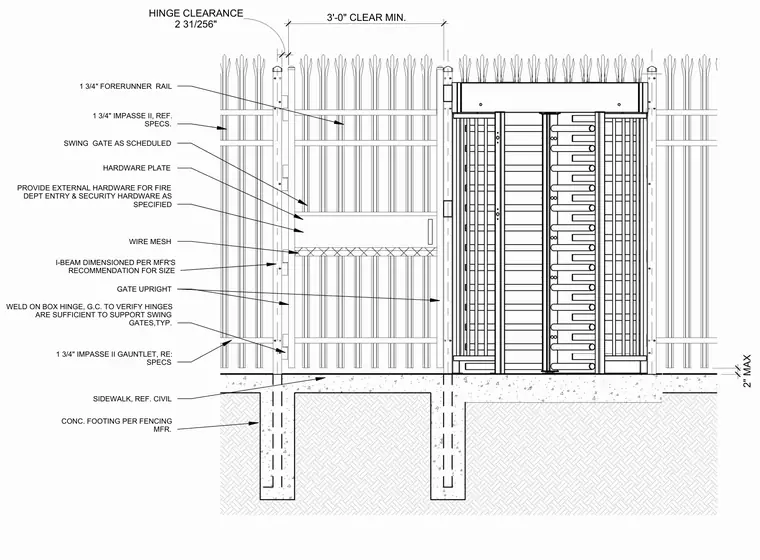

This elevation shows a security swing gate and turnstile assembly mounted on a concrete sidewalk and supported by concrete footings sized per the fencing manufacturer's recommendations. The framework consists of I-beam posts, one-and-three-quarter-inch Forerunner rails, Impasse II fencing with gauntlets, and gate uprights featuring wire mesh infill. Box hinges are welded to the gate uprights, with general contractor verification required to ensure hinges adequately support the swing gates. A hardware plate is provided along with specified external hardware for fire department entry and security systems. Dimensional callouts indicate a minimum three-foot clear opening, two-and-thirty-one-two-hundred-and-fifty-sixth-inch hinge clearance, and a two-inch maximum clearance at the base.
