Porcelain tile is set in a three-eighths-inch layer of thinset mortar adjacent to carpet over a concrete substrate. A rubber reducer transition strip bridges the height difference beneath a scheduled door. The transition strip features a beveled edge with a maximum slope of one to two and a maximum height of one-half inch, matched to the adjacent wall base finish.

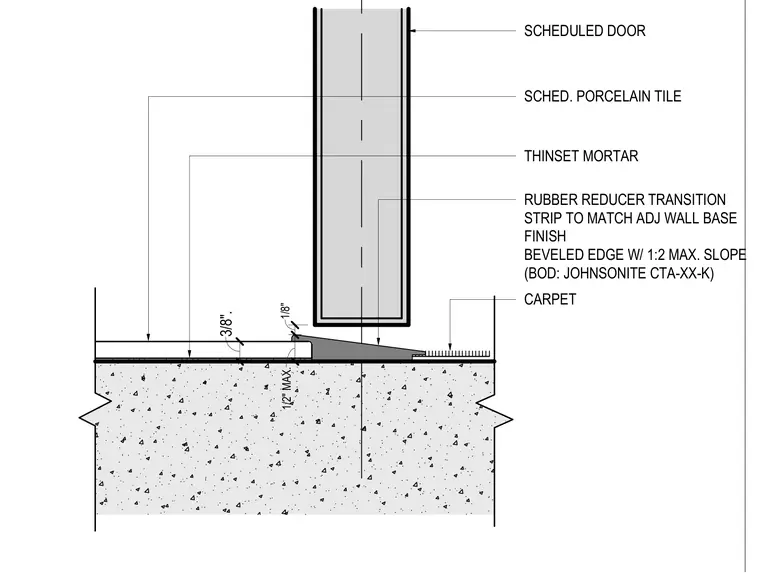

CARPET SCHED. PORCELAIN TILE SCHEDULED DOOR RUBBER REDUCER TRANSITION STRIP TO MATCH ADJ WALL BASE FINISH BEVELED EDGE W/ 1:2 MAX. SLOPE (BOD: JOHNSONITE CTA-XX-K) 1/2" MAX. 1/8" THINSET MORTAR 3/8".
