A one and one-half inch handrail mounts to the adjacent wall with bracket supports spaced at a maximum of five feet on center. Both ends of the handrail terminate with a return to the wall. The assembly receives a powder-coated finish unless noted otherwise.

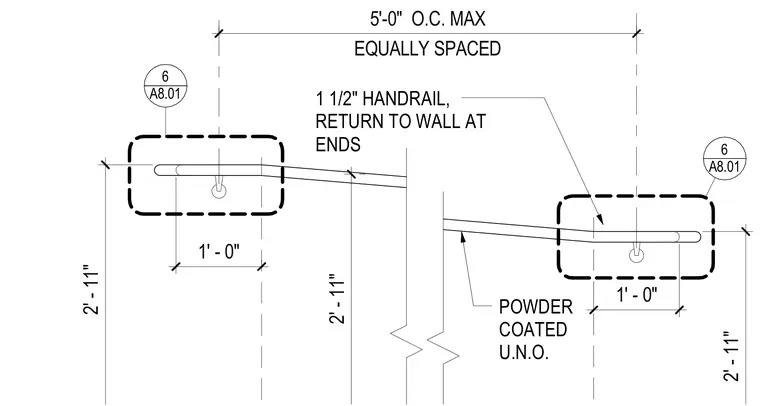

1 1/2" HANDRAIL, RETURN TO WALL AT ENDS 2' - 11" 1' - 0" 2' - 11" 2' - 11" 1' - 0" EQUALLY SPACED 5'-0" O.C. MAX 6 A8.01 6 A8.01 POWDER COATED U.N.O.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
