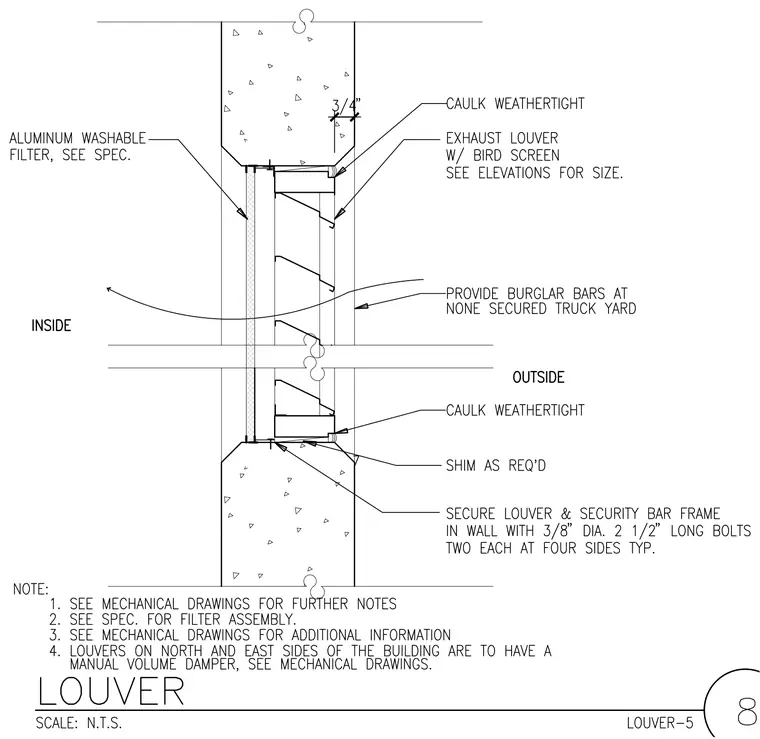

An exhaust louver with a bird screen and optional security bars installs within a formed concrete wall opening. The louver and security bar frame secure into the wall using three-eighths-inch diameter by two-and-a-half-inch long bolts, placed two on each of the four sides typically. Shims fill the gap as required around the perimeter, and joints receive a weathertight caulking seal. An aluminum washable filter mounts on the interior side per specifications, and burglar bars are provided at unsecured truck yards.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
