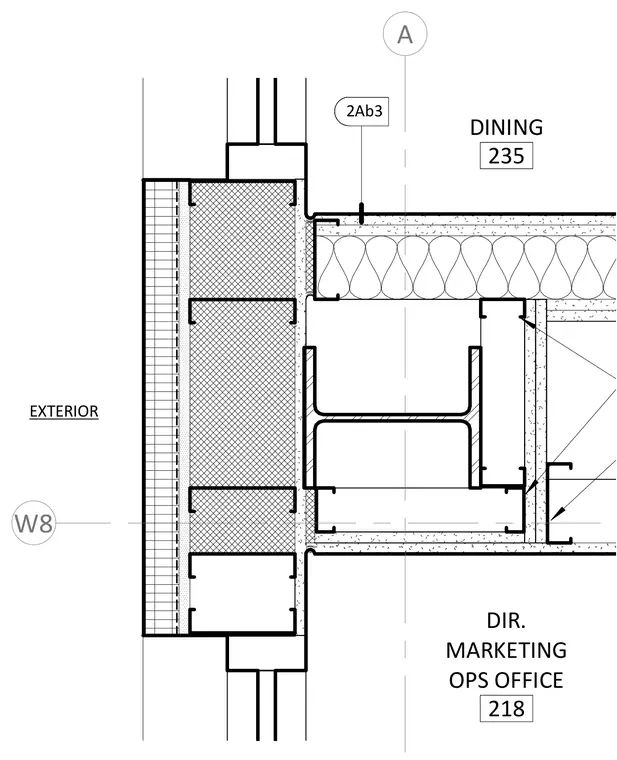

An interior metal stud partition wall terminates against an exterior steel column with surrounding metal framing and insulation. The exterior wall assembly features metal stud framing with infill insulation and exterior finishes. Gypsum board finishes both sides of the interior partition framing.
A W8 DINING 235 DIR. MARKETING OPS OFFICE 218 EXTERIOR 2Ab3
