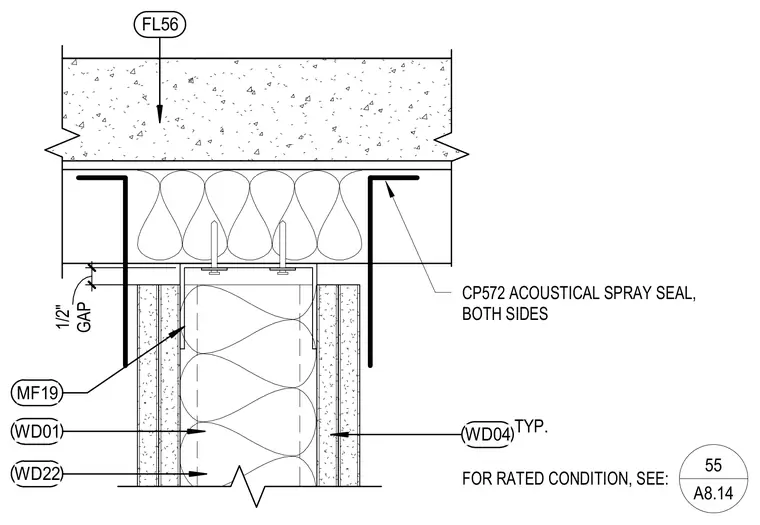

An acoustical spray seal is applied to both sides of the partition head for rated conditions. A one-half inch gap separates the top of the partition framing from the concrete slab above. Metal framing components and gypsum wallboard layers tie into the assembly detailing.
CP572 ACOUSTICAL SPRAY SEAL, BOTH SIDES FOR RATED CONDITION, SEE: FL56 GAP 1/2" TYP. WD04 MF19 WD01 WD22 55 A8.14
