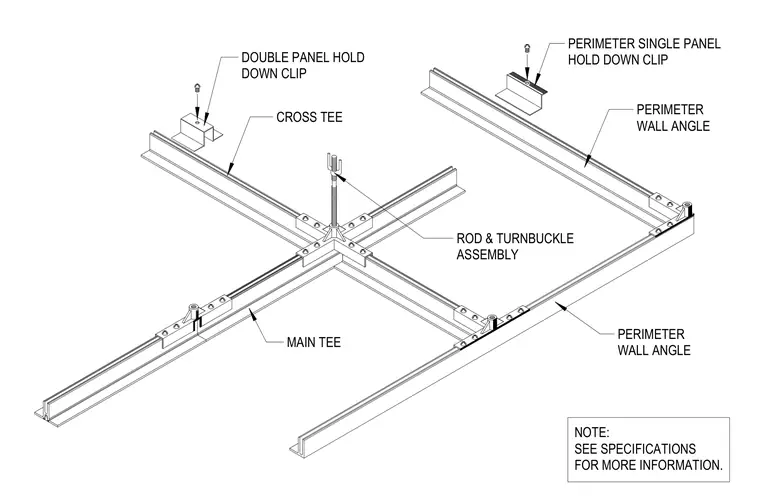

The ceiling suspension grid system is anchored by perimeter wall angles along the edge. Main tees and cross tees intersect to form the structural framework. A rod and turnbuckle assembly provides vertical support and adjustment for the grid junction. Perimeter single panel hold-down clips and double panel hold-down clips secure the panels at the edges. See specifications for more information.
PERIMETER WALL ANGLE PERIMETER WALL ANGLE PERIMETER SINGLE PANEL HOLD DOWN CLIP ROD & TURNBUCKLE ASSEMBLY CROSS TEE DOUBLE PANEL HOLD DOWN CLIP MAIN TEE NOTE: SEE SPECIFICATIONS FOR MORE INFORMATION.
