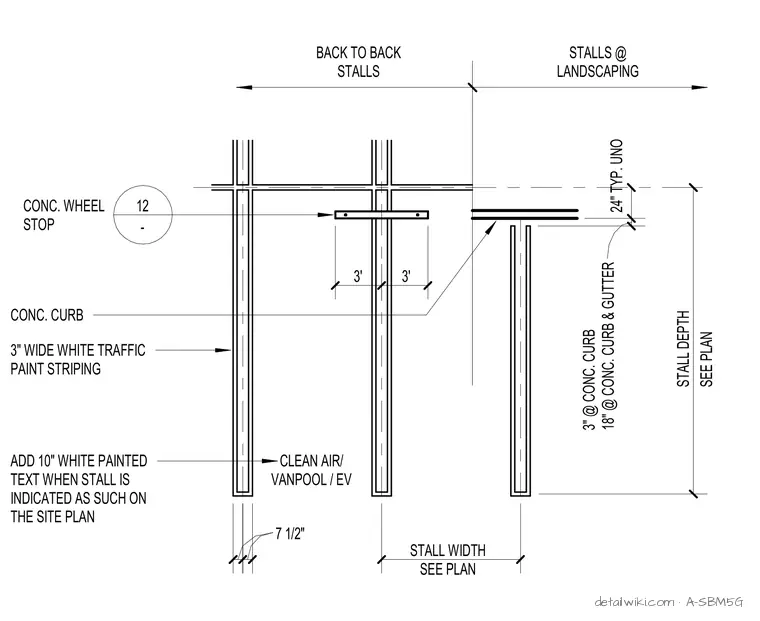

This detail defines the layout for parking stall striping and associated concrete site elements. Three-inch wide white traffic paint striping is applied to the pavement, with ten-inch high white painted text required for designated Clean Air, Vanpool, or Electric Vehicle stalls. Concrete wheel stops are positioned at a typical spacing of twenty-four inches unless noted otherwise. The assembly includes concrete curb and gutter configurations, with three-inch curb widths at standard stalls and eighteen-inch curb and gutter profiles at landscaping transitions. Stall depth and width are determined per the site plan.
Text on the drawing
3" @ CONC. CURB 18" @ CONC. CURB & GUTTER BACK TO BACK STALLS STALLS @ LANDSCAPING CONC. WHEEL STOP CONC. CURB 3" WIDE WHITE TRAFFIC PAINT STRIPING CLEAN AIR/ VANPOOL / EV STALL DEPTH SEE PLAN 24" TYP. UNO 3' 3' 12 - ADD 10" WHITE PAINTED TEXT WHEN STALL IS INDICATED AS SUCH ON TREADS 1" = 1'-0" 10
