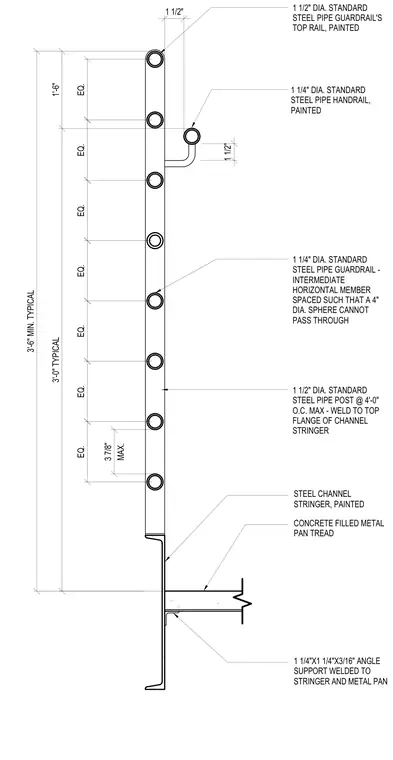

An enlarged steel guardrail and handrail assembly is mounted to a stair stringer. A one and one-half inch diameter standard steel pipe post is welded to the top flange of a painted steel channel stringer at a maximum spacing of four feet on center. The guardrail features a one and one-half inch diameter standard steel pipe top rail and one and one-quarter inch diameter intermediate horizontal members spaced evenly such that a four-inch diameter sphere cannot pass through. A separate one and one-quarter inch diameter standard steel pipe handrail is supported by a formed bracket attached to the post. The concrete-filled metal pan tread connects to the channel stringer with a one and one-quarter by one and one-quarter by three-sixteenths inch angle support welded to both the stringer and the metal pan.
EQ. EQ. EQ. EQ. EQ. EQ. EQ. 3'-6" MIN. TYPICAL 1'-6" 3'-0" TYPICAL 3 7/8" MAX. 1 1/2" 1 1/2" 1 1/4"X1 1/4"X3/16" ANGLE SUPPORT WELDED TO STRINGER AND METAL PAN 1 1/2" DIA. STANDARD STEEL PIPE POST @ 4'-0" O.C. MAX - WELD TO TOP FLANGE OF CHANNEL STRINGER CONCRETE FILLED METAL PAN TREAD STEEL CHANNEL STRINGER, PAINTED 1 1/4" DIA. STANDARD STEEL PIPE GUARDRAIL - INTERMEDIATE HORIZONTAL MEMBER SPACED SUCH THAT A 4" DIA. SPHERE CANNOT PASS THROUGH 1 1/4" DIA. STANDARD STEEL PIPE HANDRAIL, PAINTED 1 1/2" DIA. STANDARD STEEL PIPE GUARDRAIL'S TOP RAIL, PAINTED
