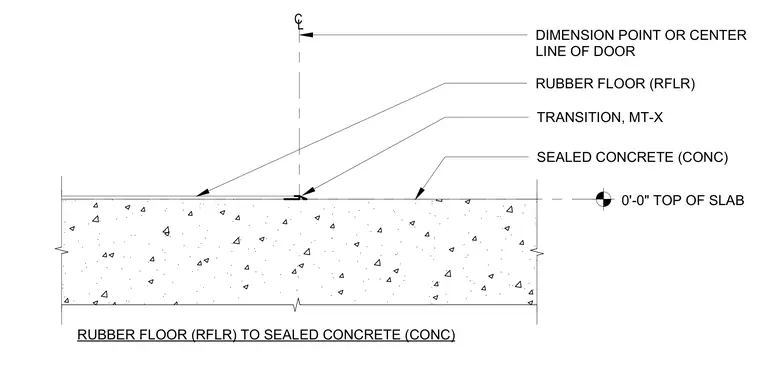

A floor transition between a rubber floor and a sealed concrete slab located at the center line of a door. The assembly features a transition strip set flush between the rubber flooring and the sealed concrete over a concrete substrate. Elevation is referenced to the top of the slab at zero feet and zero inches.
DIMENSION POINT OR CENTER LINE OF DOOR 0'-0" TOP OF SLAB CL RUBBER FLOOR (RFLR) RUBBER FLOOR (RFLR) TO SEALED CONCRETE (CONC) SEALED CONCRETE (CONC) TRANSITION, MT-X
