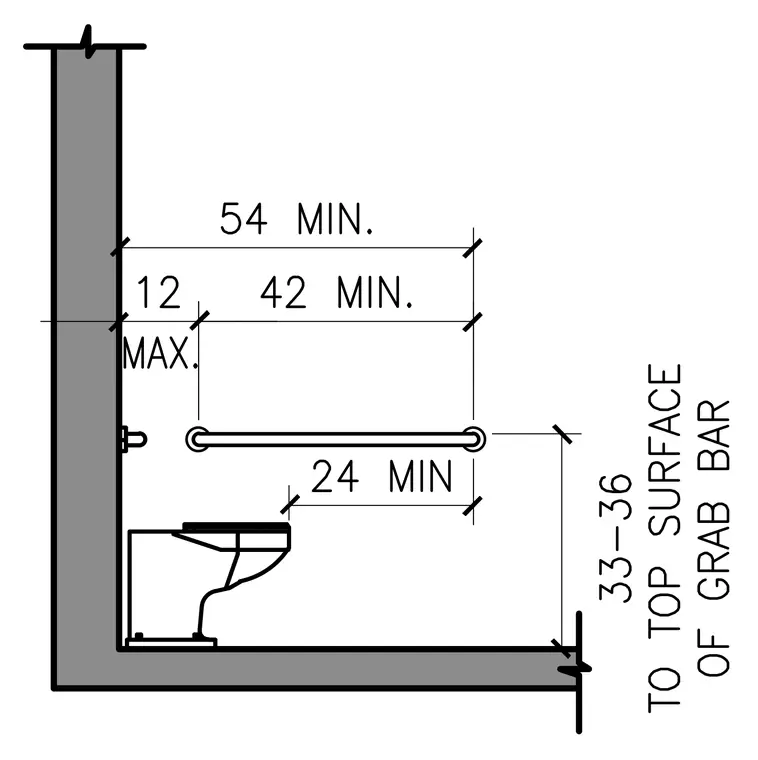

An accessible water closet installation shows the required side wall clearance and horizontal grab bar layout. The horizontal grab bar is positioned between thirty-three and thirty-six inches to the top surface above the finished floor. The grab bar extends a minimum of forty-two inches long, with twenty-four inches minimum extending past the front of the water closet. The rear wall toilet centerline spacing and side wall clearance dimensions are fifty-four inches minimum overall, with the vertical toilet centerline dimensioned twelve inches maximum from the side wall.
