Architectural · A-SBBRQ

Accessible Path and Aisle

About this detail

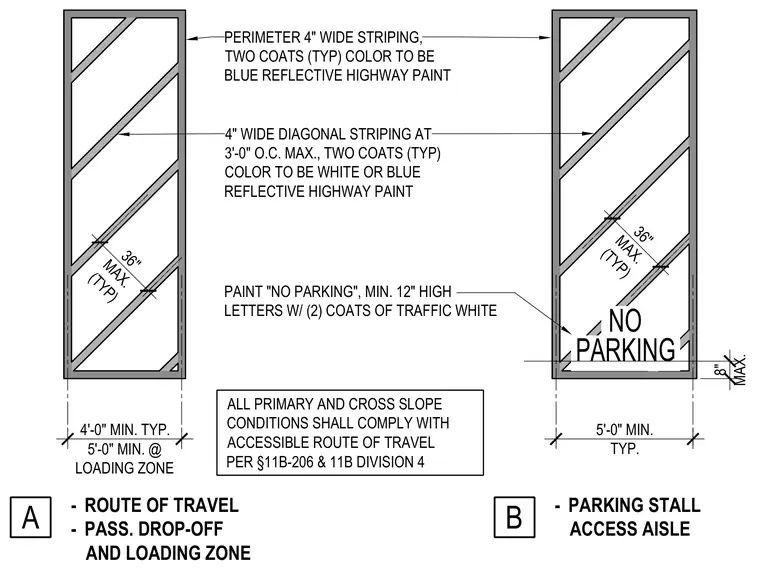

An accessible route of travel, passenger drop-off, and loading zone layout provides a four-foot minimum width typical with a five-foot minimum width at loading zones. The parking stall access aisle features a perimeter four-inch wide striping with two coats of blue reflective highway paint. Four-inch wide diagonal striping is applied at three-foot on-center maximum with two coats of white or blue reflective highway paint. The words "NO PARKING" are painted in minimum twelve-inch high letters with two coats of traffic white paint. All primary and cross slope conditions comply with accessible route of travel requirements per §11B-206 and 11B Division 4.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
