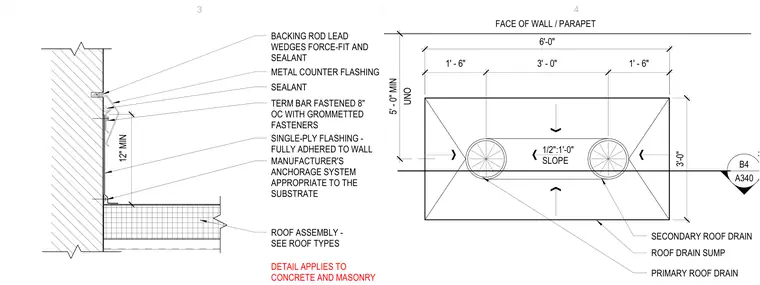

A single-ply membrane flashing is fully adhered to a concrete or masonry wall substrate and secured at twelve inches minimum above the roof level with a termination bar fastened eight inches on center using grommeted fasteners. A metal counter flashing is set over the top edge of the membrane with a backing rod, lead wedges force-fit, and sealant. The accompanying roof drain sump plan covers a six-foot by three-foot sump area with a one-half-inch per foot slope containing both a primary and secondary roof drain.
12" MIN ROOF ASSEMBLY - SEE ROOF TYPES MANUFACTURER'S ANCHORAGE SYSTEM APPROPRIATE TO THE SUBSTRATE SINGLE-PLY FLASHING - FULLY ADHERED TO WALL TERM BAR FASTENED 8" OC WITH GROMMETTED FASTENERS SEALANT METAL COUNTER FLASHING BACKING ROD LEAD WEDGES FORCE-FIT AND SEALANT DETAIL APPLIES TO CONCRETE AND MASONRY 1' - 6" 3' - 0" 1' - 6" SECONDARY ROOF DRAIN PRIMARY ROOF DRAIN 1/2":1'-0" SLOPE FACE OF WALL / PARAPET UNO 5' - 0" MIN 3'-0" 6'-0" B4 A340 Sim ROOF DRAIN SUMP 3 4
