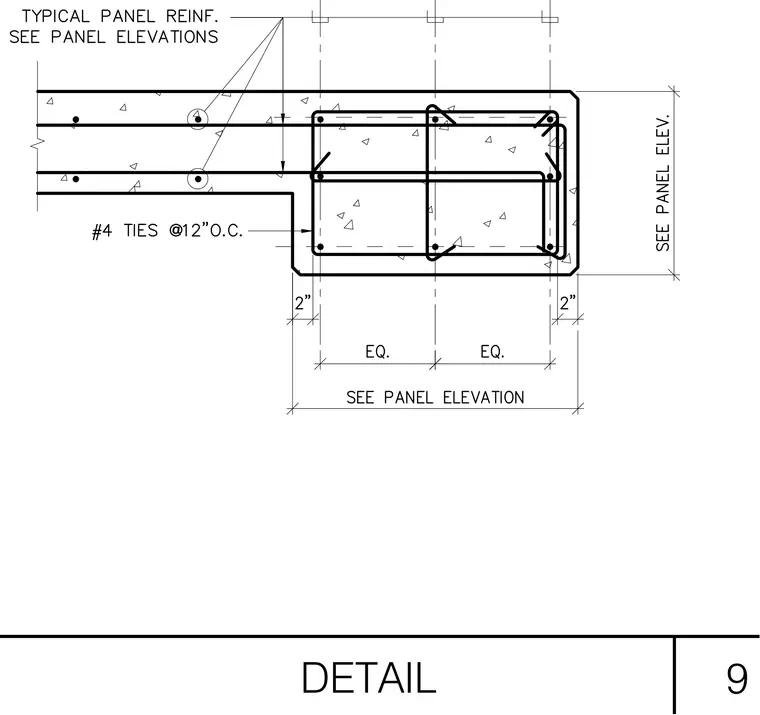

This concrete detail shows the edge condition and reveal of a precast concrete panel reinforced with number four ties spaced at twelve inches on center. The main panel reinforcement is sized per the panel elevations. The edge profile incorporates a two-inch dimensioned step and clear cover as indicated by dimensions on the drawing.
