A one-quarter-inch photopolymer sign panel mounts to glass using an eighth-inch standoff and an eighth-inch backer plate, secured with double-faced tape or silicone as required. A separate wall condition mounts an identical photopolymer sign panel with an eighth-inch standoff and an acrylic insert featuring vinyl text, incorporating an eighth-inch flush chrome metal insert. Both assemblies utilize double-faced tape or silicone adhesive for substrate attachment.

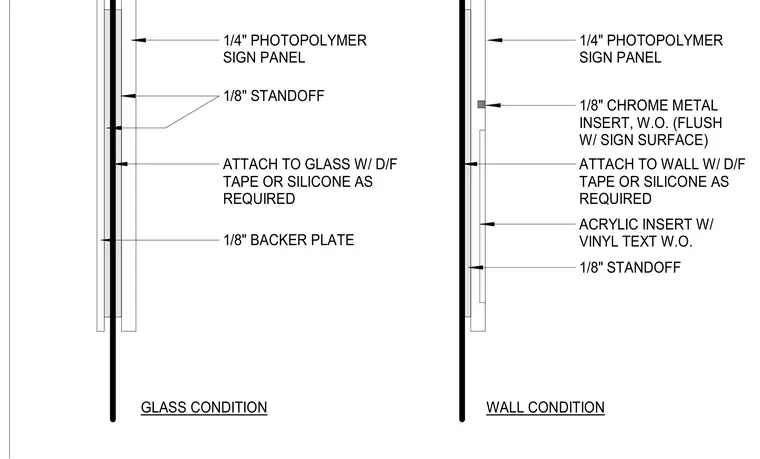

1/4" PHOTOPOLYMER SIGN PANEL 1/8" STANDOFF ATTACH TO GLASS W/ D/F TAPE OR SILICONE AS REQUIRED 1/8" BACKER PLATE 1/4" PHOTOPOLYMER SIGN PANEL 1/8" STANDOFF ATTACH TO WALL W/ D/F TAPE OR SILICONE AS REQUIRED GLASS CONDITION WALL CONDITION 1/8" CHROME METAL INSERT, W.O. (FLUSH W/ SIGN SURFACE) ACRYLIC INSERT W/ VINYL TEXT W.O.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
