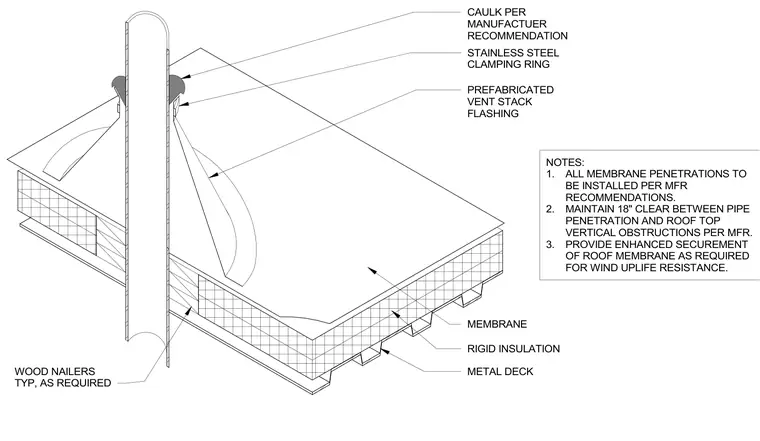

A prefabricated vent stack flashing penetrates a roof assembly consisting of a membrane, rigid insulation, and metal deck supported by wood nailers. A stainless steel clamping ring secures the top of the boot, sealed with caulk per manufacturer recommendations. All membrane penetrations are installed per manufacturer recommendations with an eighteen inch clearance maintained between pipe penetrations and rooftop vertical obstructions. Enhanced securement of the roof membrane is provided as required for wind uplift resistance.
NOTES: 1. ALL MEMBRANE PENETRATIONS TO BE INSTALLED PER MFR RECOMMENDATIONS. 2. MAINTAIN 18" CLEAR BETWEEN PIPE PENETRATION AND ROOF TOP VERTICAL OBSTRUCTIONS PER MFR. 3. PROVIDE ENHANCED SECUREMENT OF ROOF MEMBRANE AS REQUIRED FOR WIND UPLIFE RESISTANCE. CAULK PER MANUFACTUER RECOMMENDATION STAINLESS STEEL CLAMPING RING PREFABRICATED VENT STACK FLASHING RIGID INSULATION METAL DECK WOOD NAILERS TYP, AS REQUIRED MEMBRANE
