Architectural · A-SAVF8

Plan Detail Room 137

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Elements

Floors / Slabs Partitions Walls

Text on the drawing

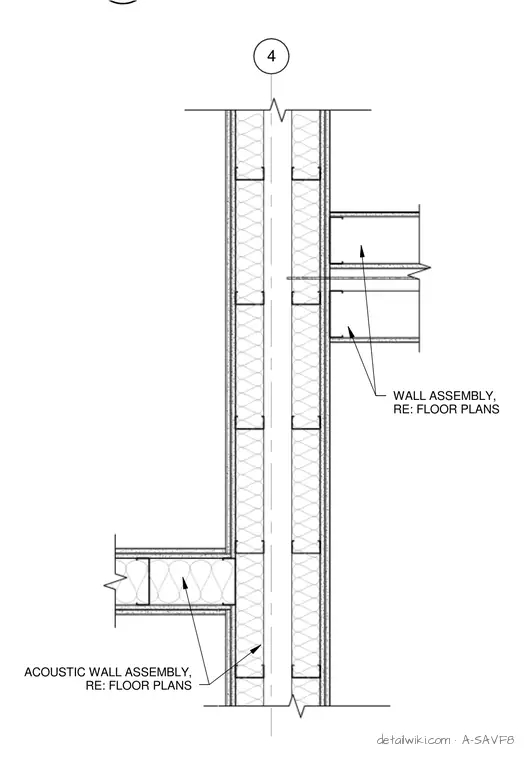

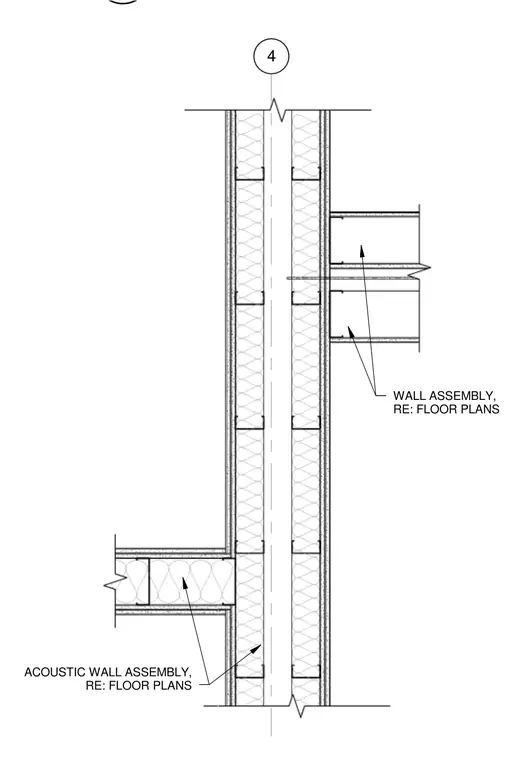

4 ACOUSTIC WALL ASSEMBLY, RE: FLOOR PLANS WALL ASSEMBLY, RE: FLOOR PLANS
