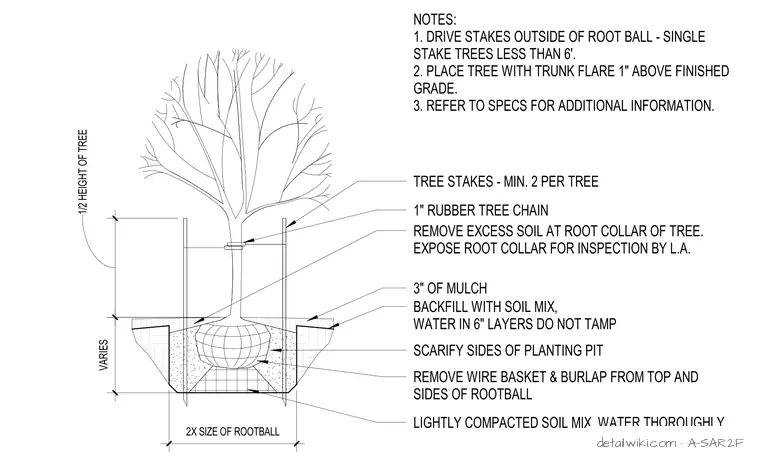

Text on the drawing
REMOVE EXCESS SOIL AT ROOT COLLAR OF TREE. EXPOSE ROOT COLLAR FOR INSPECTION BY L.A. 3" OF MULCH 1" RUBBER TREE CHAIN BACKFILL WITH SOIL MIX, WATER IN 6" LAYERS DO NOT TAMP SCARIFY SIDES OF PLANTING PIT REMOVE WIRE BASKET & BURLAP FROM TOP AND SIDES OF ROOTBALL LIGHTLY COMPACTED SOIL MIX, WATER THOROUGHLY NOTES: 1. DRIVE STAKES OUTSIDE OF ROOT BALL - SINGLE STAKE TREES LESS THAN 6'. 2. PLACE TREE WITH TRUNK FLARE 1" ABOVE FINISHED GRADE. 3. REFER TO SPECS FOR ADDITIONAL INFORMATION. 2X SIZE OF ROOTBALL TREE STAKES - MIN. 2 PER TREE 1/2 HEIGHT OF TREE VARIES
