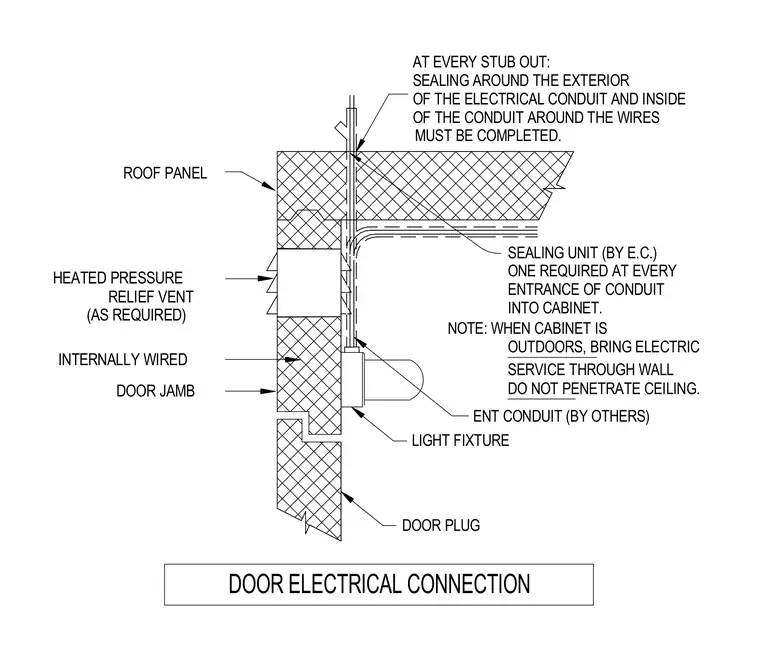

An internally wired door jamb interfaces with a heated pressure relief vent and a roof panel. An electrical non-metallic tubing conduit by others routes through the roof panel, requiring a sealing unit installed by the electrical contractor at the cabinet entrance. Stub outs require sealing around the exterior of the conduit and inside the conduit around the wires. Outdoor cabinet installations require bringing electric service through the wall without penetrating the ceiling.
DOOR ELECTRICAL CONNECTION DOOR JAMB INTERNALLY WIRED RELIEF VENT HEATED PRESSURE ROOF PANEL DO NOT PENETRATE CEILING. ENT CONDUIT (BY OTHERS) DOOR PLUG LIGHT FIXTURE INTO CABINET. SEALING UNIT (BY E.C.) NOTE: WHEN CABINET IS ENTRANCE OF CONDUIT OUTDOORS, BRING ELECTRIC SERVICE THROUGH WALL ONE REQUIRED AT EVERY (AS REQUIRED) SEALING AROUND THE EXTERIOR OF THE ELECTRICAL CONDUIT AND INSIDE AT EVERY STUB OUT: OF THE CONDUIT AROUND THE WIRES MUST BE COMPLETED.
