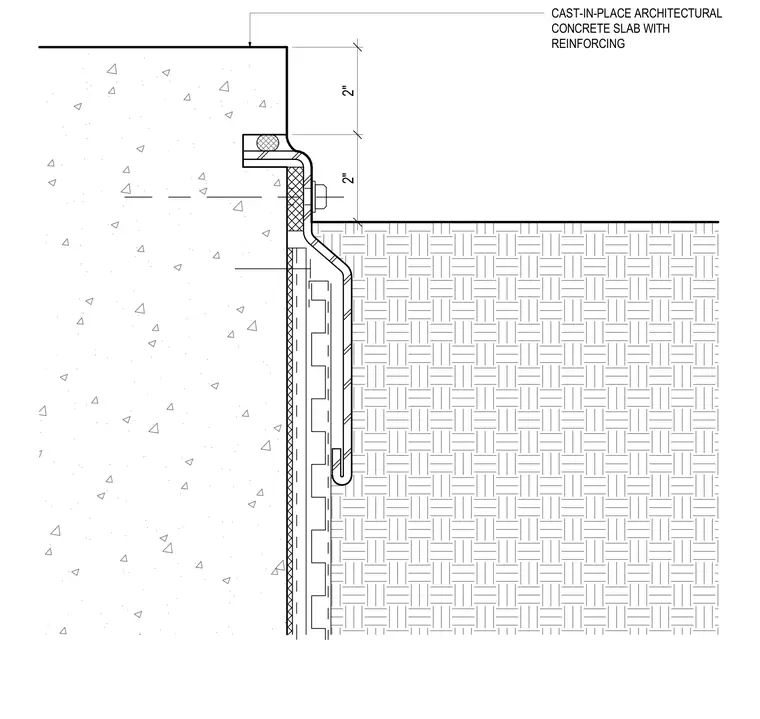

A cast-in-place architectural concrete slab with reinforcing connects to a formed edge profile utilizing an embedded reglet and backer rod with sealant. A bent metal flashing or reglet insert anchors into the concrete face with a mechanical fastener, extending downward to cover the adjacent textured paving or wall assembly.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
