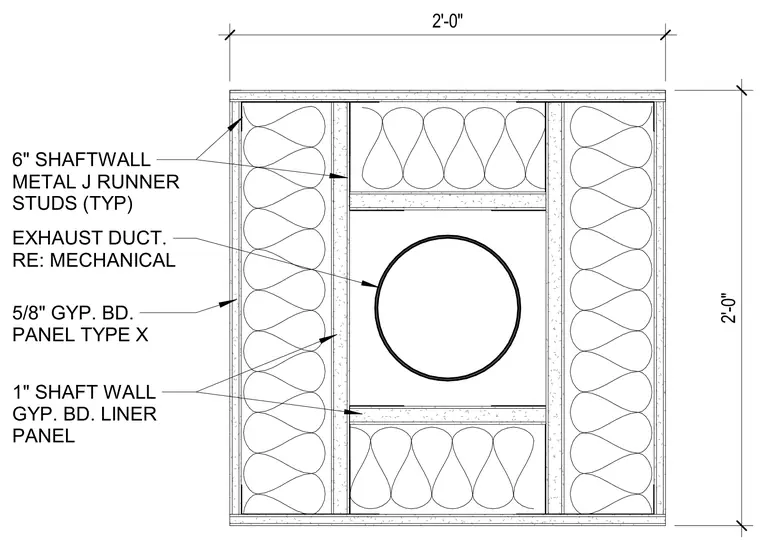

An exhaust duct is centered within a two-foot by two-foot shaftwall enclosure framed with six-inch metal J runners and studs. One-inch shaftwall gypsum board liner panels line the interior chase framing around the duct. The exterior faces are finished with five-eighths-inch Type X gypsum board panels.
2'-0" 2'-0" 6" SHAFTWALL METAL J RUNNER STUDS (TYP) EXHAUST DUCT. RE: MECHANICAL 1" SHAFT WALL GYP. BD. LINER PANEL 5/8" GYP. BD. PANEL TYPE X
