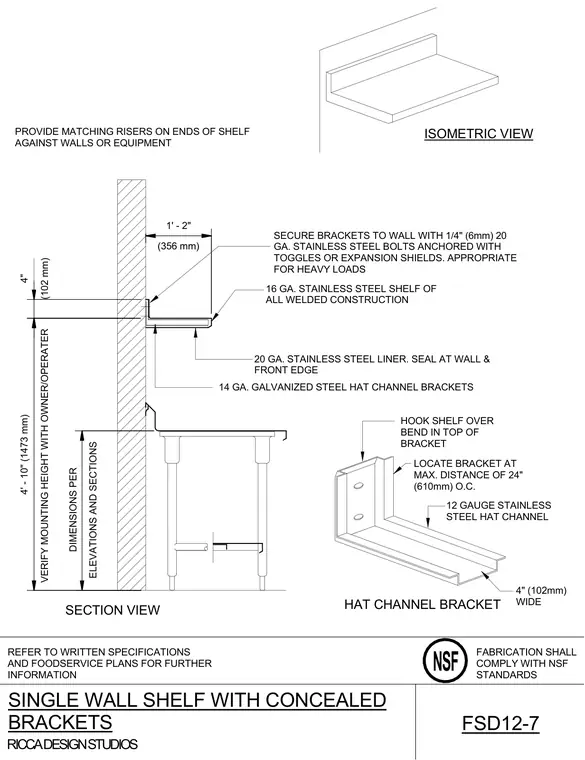

A single wall-mounted shelf is constructed from sixteen gauge stainless steel with all welded construction, featuring a twenty gauge stainless steel liner sealed at the wall and front edge. The shelf is supported by fourteen gauge galvanized steel hat channel brackets spaced at a maximum distance of twenty-four inches on center, with the shelf hooked over the bend in the top of the bracket. The brackets are secured to the wall using one-quarter inch twenty gauge stainless steel bolts anchored with toggles or expansion shields appropriate for heavy loads. Matching risers are provided on the ends of the shelf against walls or equipment, and the standard mounting height is verified with the owner or operator at four feet ten inches.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF VERIFY MOUNTING HEIGHT WITH OWNER/OPERATER 4' - 10" (1473 mm) (102 mm) 4" (356 mm) 1' - 2" ELEVATIONS AND SECTIONS DIMENSIONS PER SINGLE WALL SHELF WITH CONCEALED BRACKETS FSD12-7 ISOMETRIC VIEW PROVIDE MATCHING RISERS ON ENDS OF SHELF AGAINST WALLS OR EQUIPMENT SECURE BRACKETS TO WALL WITH 1/4" (6mm) 20 GA. STAINLESS STEEL BOLTS ANCHORED WITH TOGGLES OR EXPANSION SHIELDS. APPROPRIATE FOR HEAVY LOADS 20 GA. STAINLESS STEEL LINER. SEAL AT WALL & FRONT EDGE 14 GA. GALVANIZED STEEL HAT CHANNEL BRACKETS HOOK SHELF OVER BEND IN TOP OF BRACKET 12 GAUGE STAINLESS STEEL HAT CHANNEL HAT CHANNEL BRACKET SECTION VIEW LOCATE BRACKET AT MAX. DISTANCE OF 24" (610mm) O.C. 4" (102mm) WIDE 16 GA. STAINLESS STEEL SHELF OF ALL WELDED CONSTRUCTION
