Architectural · A-S9GMZ

Floor Level Elevations and Slab Transition Conventions

Materials

Steel

Elements

Floors / Slabs Arches Drainage Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

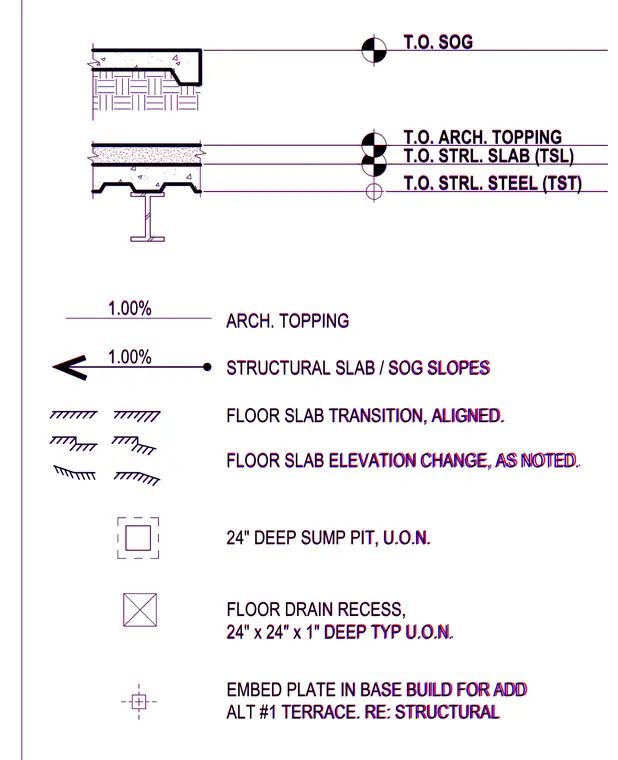

This drawing outlines standard architectural notations and details for floor elevations, including top of slab on grade, architectural topping, structural slab, and structural steel levels. Drainage provisions feature a twenty-four inch deep sump pit and a twenty-four by twenty-four by one inch typical floor drain recess unless noted otherwise. Slab transitions and elevation changes are indicated alongside one percent sloping for architectural toppings and structural slabs or slabs on grade. An embed plate is specified in the base building for alternate one terrace construction, coordinated with structural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
