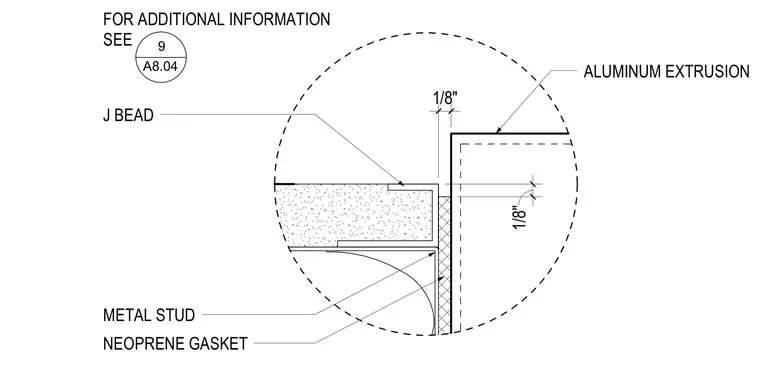

An aluminum extrusion interfaces with a cold-formed metal stud wall finished with a metal J bead. A neoprene gasket is positioned at the joint between the curtain wall framing and the adjacent assembly, maintaining a one-eighth-inch clearance gap.
NEOPRENE GASKET FOR ADDITIONAL INFORMATION SEE 1/8" 1/8" METAL STUD J BEAD 9 A8.04 ALUMINUM EXTRUSION
