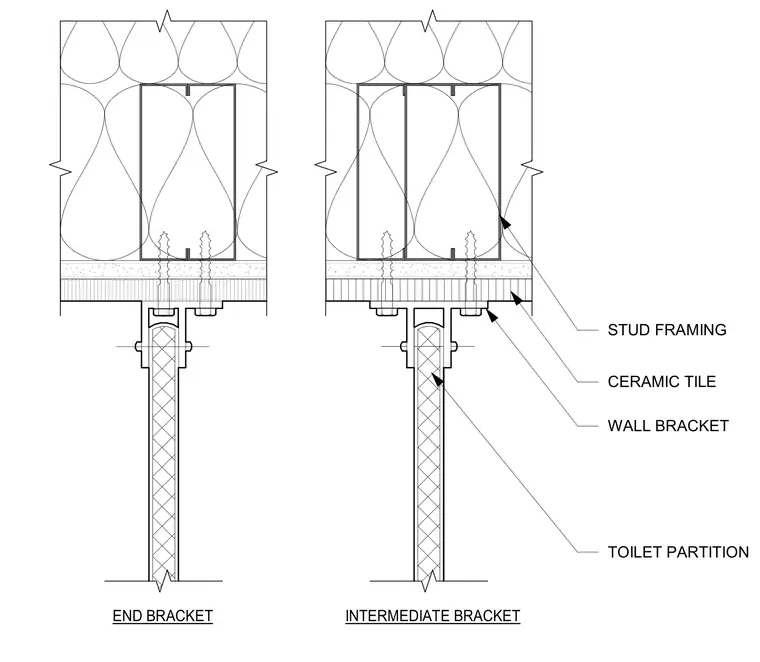

Toilet partitions connect to a ceramic tile wall finish backed by wood or metal stud framing. The partition panel is secured using either an end bracket or an intermediate bracket fastened through the tile layer directly into the underlying stud framing with mechanical fasteners.
INTERMEDIATE BRACKET END BRACKET STUD FRAMING CERAMIC TILE WALL BRACKET TOILET PARTITION
