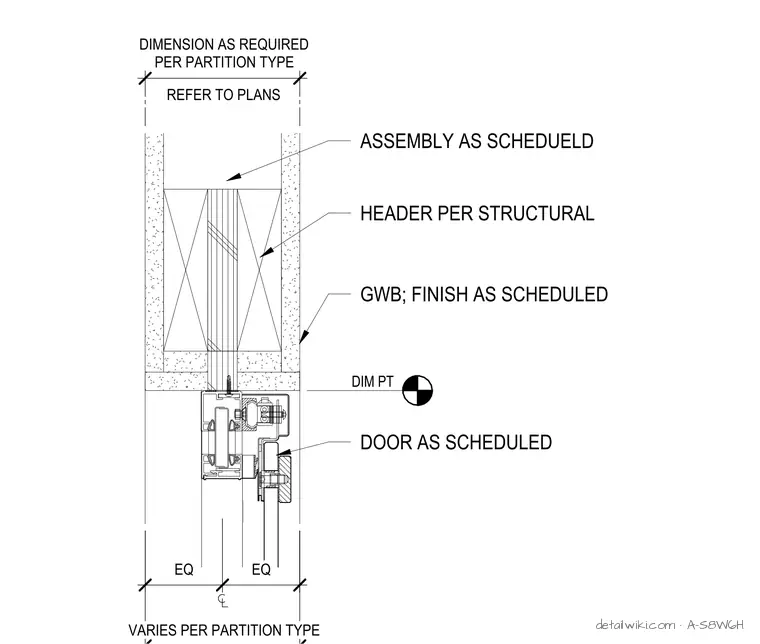

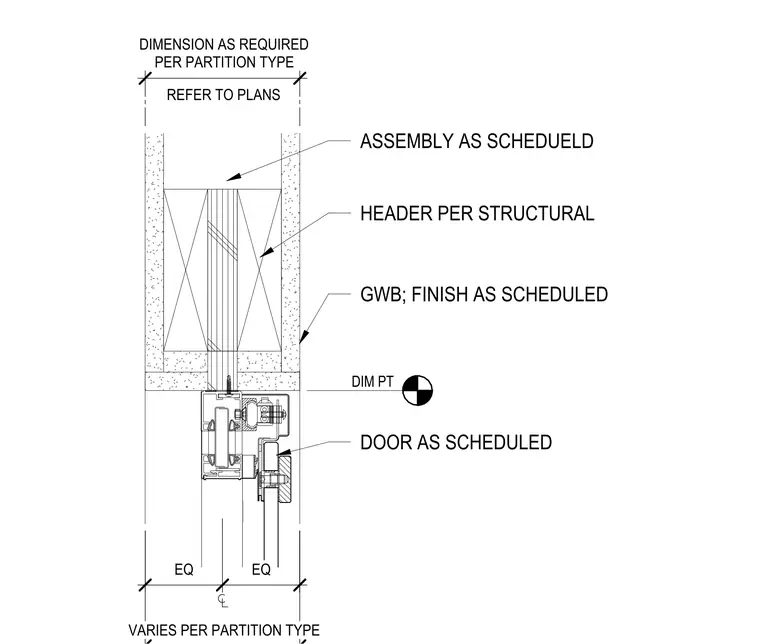

A door head track mounts beneath a structural header framed within a gypsum wallboard partition. Partition width and header size conform to structural and partition type requirements noted on the plans. The door head track centers within the partition with equal spacing on either side to accommodate the door assembly as scheduled. Gypsum wallboard finish follows the project finish schedule.
