An entry threshold and jamb guard assembly for a heavy-duty steel sectional door. A 3/8-inch bent plate jamb guard extends to four feet height and is anchored to the substrate using one-half-inch diameter wedge anchors spaced at twenty-four inches on center, finished with two coats of safety yellow gloss enamel paint. An insulated three-inch heavy-duty track is mounted adjacent, with a dead bolt latch positioned six inches above the jamb guard. Continuous weather sealing is provided all around.

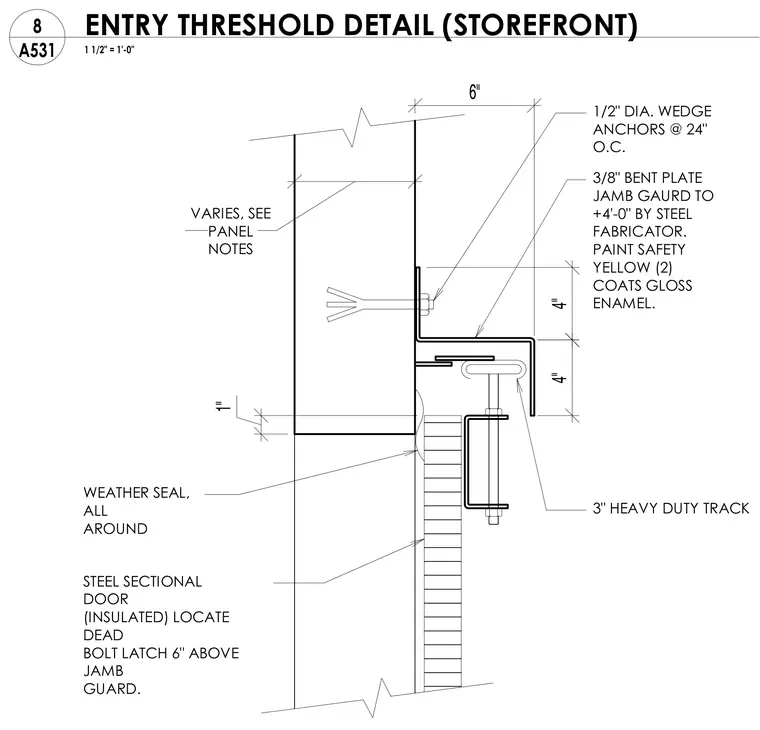

VARIES, SEE PANEL NOTES 1" 4" 4" 6" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GAURD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND 1 1/2" = 1'-0" A531 8 ENTRY THRESHOLD DETAIL (STOREFRONT)
