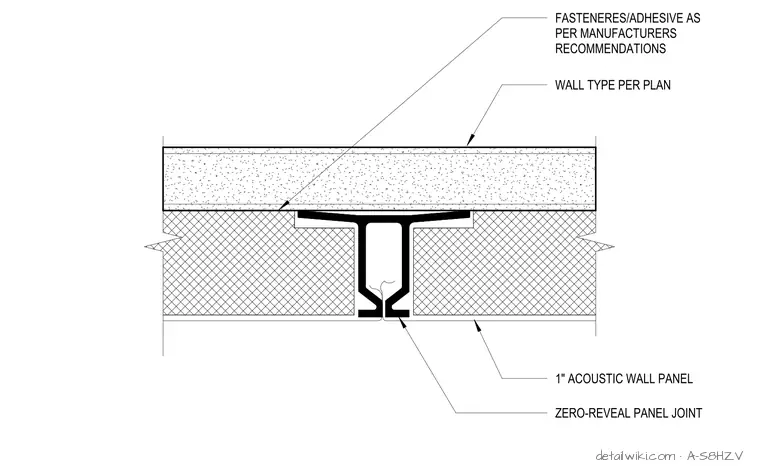

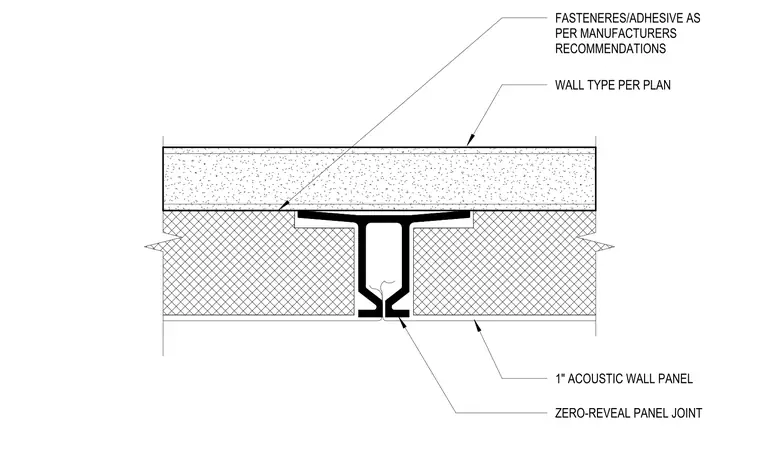

This assembly features one-inch acoustic wall panels installed with a zero-reveal panel joint profile. The panels are secured to a wall substrate, which is specified as wall type per plan, using fasteners or adhesive as per the manufacturer's recommendations.
