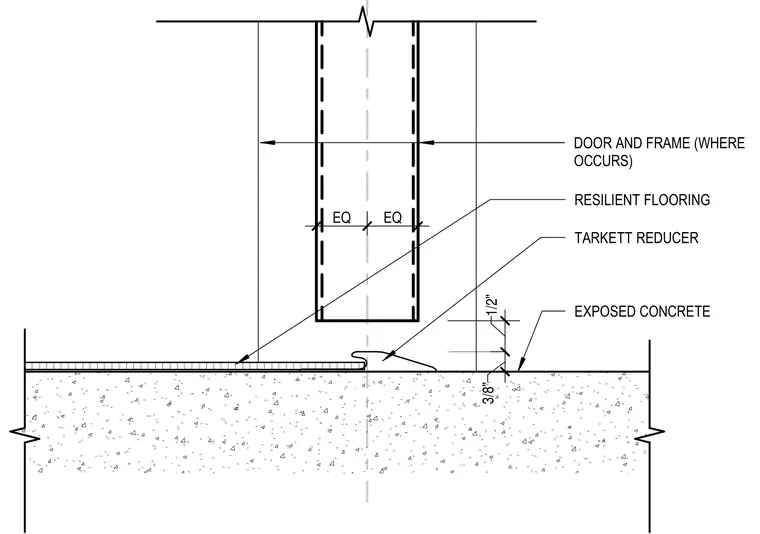

Resilient flooring terminates at a Tarkett reducer strip bridging the height difference between the flooring and the exposed concrete slab. The transition assembly accommodates a total vertical offset of 7/8 inch, consisting of a 1/2 inch segment and a 3/8 inch segment. The door and frame assembly centers over the transition point, with equal spacing provided on either side of the frame centerline.
Text on the drawing
OF DOOR, TYP RESILIENT FLOORING TARKETT REDUCER EXPOSED CONCRETE DOOR AND FRAME (WHERE OCCURS) EQ EQ 3/8" 1/2" RESILIENT TO CONCRETE AT INTERIOR SCALE: 6" = 1'-0" 7
