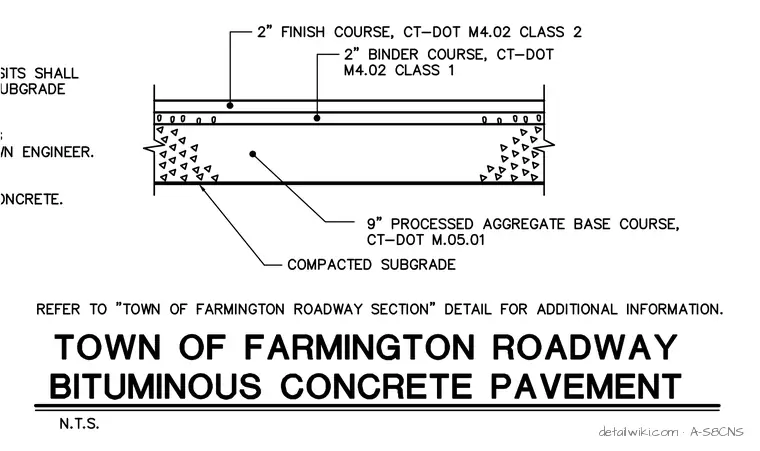

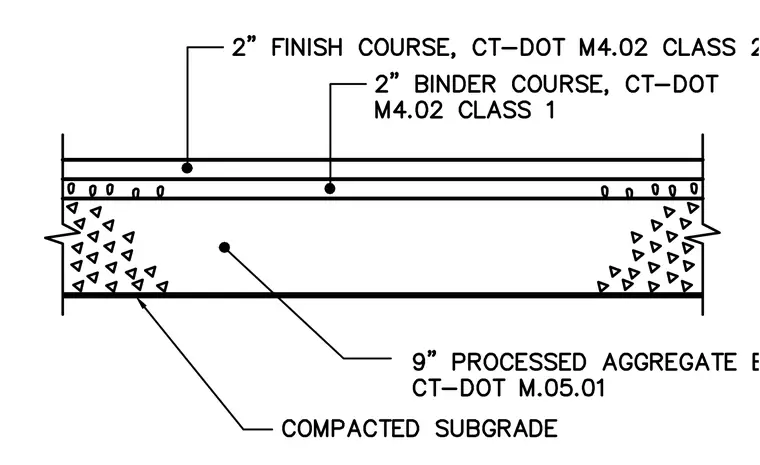

This roadway cross-section details a bituminous concrete pavement assembly consisting of a two-inch finish course of CT-DOT M4.02 Class 2 asphalt over a two-inch binder course of CT-DOT M4.02 Class 1 asphalt. The structural base comprises a nine-inch layer of processed aggregate base course conforming to CT-DOT M05.01, supported directly upon a compacted subgrade. Callouts indicate standard material specifications and layer thicknesses for local roadway construction.
